400 Series Double-Hung Window Sash Balancer
Block & Tackle with Shoe - 616
Part #:
9152187

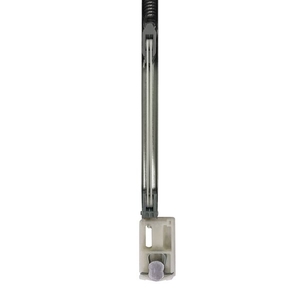

400 Series Double-Hung Window Sash Balancer
Block & Tackle with Shoe - 616
Part #:
9152187
Works With:
400 Series Tilt-Wash Double-Hung Window
Description
- Used with all HP glass types prior to April 2012 and with units with 2.2 etched into glass for sizes 2832, 2632, 21032 2432 cottage lower sash, 2632 cottage lower sash, 26310 cottage upper sash, 2832 cottage lower sash, 28310 cottage upper sash and 210310 cottage upper sash.
- Also used with units with 3.0 etched into glass for sizes 2032, 3832, 2032 cottage lower sash, 20310 cottage upper sash, 3432 cottage lower sash and 38310 cottage upper sash.
- Balancer was modified in 2016 - order quantity of two when ordering replacements for a unit manufactured prior to November 2016.
- Balancer allows for smooth operation and maintains the position of the window sash.
- Balancers are found in the side jambs of both the upper and lower sash.
- When ordering balancers we recommend replacing all balancers and the window side jamb liners.
Specifications
Details
Product Line
400 Series Tilt-Wash Double-Hung Window
Unit Number & Size
2032
2032 Cottage
20310 Cottage
2632 Cottage
26310 Cottage
28310 Cottage
3432 Cottage
3832
38310 Cottage
21032
210310 Cottage
Dimensions (in inches)
