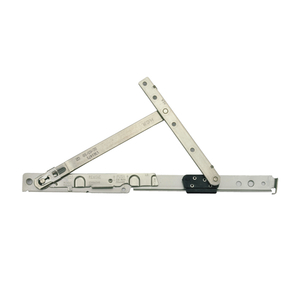

Casement Hinge 1361471
Lower Split Arm Hinge with Screws, 20 Inch Opening, Sizes CW35 through CW6 and CX35, Left-Hand Corrosion Resistant
Part #:
1361471
Casement Hinge 1361471
Lower Split Arm Hinge with Screws, 20 Inch Opening, Sizes CW35 through CW6 and CX35, Left-Hand Corrosion Resistant
Part #:
1361471
Works With:
400 Series Casement Window
Description
- Lower split arm hinge with screws and egress control plate
- Hinge is corrosion-resistant and is made of high quality stainless steel, which is ideal for harsh and corrosive environment applications such as heavy industrial or coastal areas
- Used on unit sizes CW35-CW6 and CX35 with a 20 inch opening, and uses the standard split arm upper hinge
- Left hand - a left hand unit will have the lock on the left hand side when viewed from the interior
- For units manufactured from 1966 to current, if the window was manufactured prior to 1999 you must replace both the upper and lower hinge
*These parts require Instruction Guide Hinge Replacement/Conversion (0005462)
Specifications
Details
Product Line
400 Series Casement Window
Unit Number & Size
CX35
CX135
CW6
CW55
CW5
CW45
CW4
CW35
CW25
CW16
CW155
CW15
CW145
CW14
CW135
CW235
CW245
CW345
CW335
CW34
Dimensions (in inches)
