100 Series Casement Window Corrosion Resistant Washability Hinge Kit

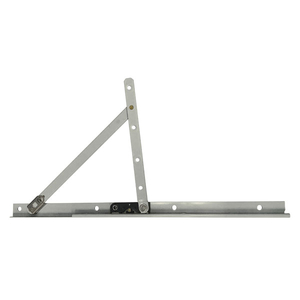

Casement Corrosion Resistant Washability Hinge Kit - Left Hand

Part #: 9046342

100 Series Casement Window Corrosion Resistant Washability Hinge Kit
100 Series Casement Window Corrosion Resistant Washability Hinge Kit

Casement Corrosion Resistant Washability Hinge Kit - Left Hand

Part #: 9046342

Works With:
100 Series Casement Window

Price$16.47
Frequently Bought Together
100 Series Casement Window Corrosion Resistant Washability Hinge Kit
Hinge Adjustment Wrench
$30.64
Casement Corrosion Resistant Washability Hinge Kit - Left Hand Part Number: 9046342
Price$16.47
100 Series & A-Series Casement Hinge Adjustment Wrench
Price$14.17
Description
  • Casement washability hinge kit for 100 series casement windows
  • Corrosion Resistant - Corrosion resistant hinge has a stainless finish and can be checked with a magnet. Magnet will not stick to HCR hinge
  • Used on all sizes except 2640, 2646, 2650, 2656 and 2660
  • Left Hand Kit - Left Hand unit (viewed from exterior hinge side) uses left hand hinge kit for sill and right hand hinge kit for head
  • Kit includes 1 Maxim hinge track, 1 Maxim hinge arm, and 8 #7 x 3/4Ý Phil, FH Undercut SS 410 screws
Specifications
Details
Product Series
100 Series
Product Line
100 Series Casement Window
Unit Number & Size
2020
2036
3056 Even
3020
3030
3036
3040
3046
3050
3060
1620
1626
1630
1636
1640
1646
1650
1656
1660
2026
3026
Handing
Left
Lead Time
3
Dimensions (in inches)
Visible Glass Width
11 1/4
23 1/4
29 1/4
17 1/4
Visible Glass Height
23 1/4
29 1/4
41 1/4
59 1/4
65 1/4
17 1/4
47 1/4
53 1/4
Weight (pounds)
1.00
