100 Series Casement Egress Hinge Kit 9046337

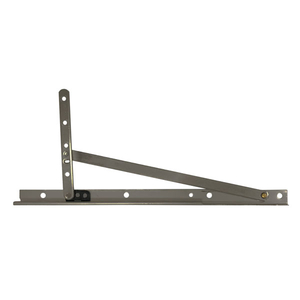

100 Series Casement Egress Hinge Kit - Right Hand

Part #: 9046337

100 Series Casement Egress Hinge Kit 9046337
100 Series Casement Egress Hinge Kit 9046337

100 Series Casement Egress Hinge Kit - Right Hand

Part #: 9046337

Price$7.94
Frequently Bought Together
100 Series Casement Egress Hinge Kit 9046337
Hinge Adjustment Wrench 9006253
$21.36
100 Series Casement Egress Hinge Kit - Right Hand Part Number: 9046337
Price$7.94
100 Series & A-Series Casement Hinge Adjustment Wrench
Price$13.42
Description
  • Casement egress hinge kit for 100 series casement windows
  • Use on 2640, 2646, 2650, 2656 and 2660 sizes
  • Right Hand unit (viewed from exterior hinge side) uses RH hinge kit for sill and LH hinge kit for head
  • Kit includes 1 Maxim hinge track, 1 Maxim hinge arm, and 8 #7 x 3/4Ý Phil, FH Undercut SS 410 screws
Specifications
Details
Product Series
100 Series
Unit Number & Size
2646
2656
2640
2650
2660
Handing
Right
Lead Time
3
Dimensions (in inches)
Visible Glass Width
17 1/4
Visible Glass Height
41 1/4
59 1/4
65 1/4
47 1/4
53 1/4
Weight (pounds)
1.00
