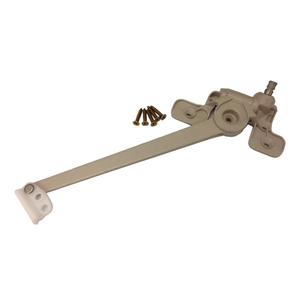

Andersen® Awning Window Operator

Straight Arm Operator- Corrosion Resistant 1995 to Present

Part #: 1521106

Andersen® Awning Window Operator
Andersen® Awning Window Operator

Straight Arm Operator- Corrosion Resistant 1995 to Present

Part #: 1521106

Works With:
400 Series Awning Window

A-Series Awning Window

Price$44.71
Andersen Installation Services:
  • Andersen-trained service professional
  • Disposal of any old materials
  • Limited warranty of work performed
Description
  • Andersen straight arm operator.
  • For units manufactured from 1995 to present.
  • This operator is corrosion-resistant and is made with high-quality stainless steel, which is ideal for harsh and corrosive environment applications such as heavy industrial or coastal areas.
  • Operators purchased from 2008 to present the shoes are secured with a rivet. To replace the rivet an entire operator must be ordered.
  • From 1995 to 2008 the shoe was held on with a screw. A replacement screw is able to be ordered. Please see related items below.
  • For units manufactured from 1995 through 1998 an adaptor plate is necessary for installation, part number 9050723.
  • The adaptor will snap onto the operator with no modifications needed.
  • Does not include operator cover or handle.
Specifications
Details
Product Series
A-Series
Product Line
400 Series Awning Window
A-Series Awning Window
Unit Number & Size
AN28
AXW6
AXW5
AXW55
AXW45
AXW4
AXW35
AXW3
AX6
AX55
AX5
AX45
AX4
AX3
AX25
AW6
AW55
AW5
AW45
AW4
AW35
AW3
AW25
AW2
AR6
AR55
AR5
AR45
AR4
AR35
AR3
AR25
AR2
AN2
AN25
AN3
AN35
AN4
AN45
AN5
AN55
AN6
A2
A25
A28
A3
A35
A4
A45
A5
A55
AW28
A335 Venting
AR281
A6
AXW28
A3535 Venting
AX28
AX35
Lead Time
8
Vintage To Year
1995 to Present
Warranty
10 Years Limited
Dimensions (in inches)
Visible Glass Width
19 5/16
23 9/16
26 11/16
31 1/8
36
43 3/16
55 1/16
60
67 1/16
Visible Glass Height
16 1/8
19 3/4
24
27 1/8
31 9/16
36 7/16
43 5/8
Weight (pounds)
2.00
Instructions
pdfStandard Size Guide
