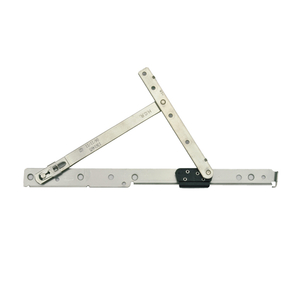

Casement Window Hinge
Lower Split Arm Hinge with Screws, Left-Hand Corrosion Resistant, All CR, CN, C sizes, CW12 - CW13, CX125 - CX16, and CXW12 - CXW145
Part #:
1361465
Casement Window Hinge
Lower Split Arm Hinge with Screws, Left-Hand Corrosion Resistant, All CR, CN, C sizes, CW12 - CW13, CX125 - CX16, and CXW12 - CXW145
Part #:
1361465
Works With:
400 Series Casement Window
Description
- Lower split arm hinge with screws.
- Left-hand – Left-hand unit will have the lock on the Left-hand side when viewed from the interior.
- Hinge is corrosion-resistant and is made with high-quality stainless steel, which is ideal for harsh and corrosive environment applications such as heavy industrial or coastal areas.
- Used on sizes CR, CN, C, CW, CX25 - CX6, and CXW2 - CXW45 - All awning sizes 1967 - present (Excluding A335/AX31).
- If your window was manufactured prior to 1999 you must replace both the upper and lower hinge.
*These parts require Instruction Guide Hinge Replacement/Conversion (0005462)
Specifications
Details
Product Line
400 Series Casement Window
Unit Number & Size
C12
C125
C13
C135
C14
C145
C155
CXW45
CXW4
CXW35
CXW3
CXW14
CXW135
CXW13
CX6
CX55
CX5
CX45
CX4
CX3
CX25
CW3
CW25
CW2
CW13
CW125
CW12
CR6
CR55
CR5
C5
C55
C6
CN5
CN55
CN6
CR45
CR4
C4
C45
CN4
CN45
CR35
CR3
C3
C35
CN3
CN35
CR25
CR2
C2
C25
CN2
CN25
CR16
CR155
CR15
CR145
CR14
CR135
CR13
CR125
CR12
CN16
CN155
CN15
CN145
CN14
CN135
CN13
CN12
C15
C22
C225
C23
C235
C24
C245
C255
C26
C32
C325
C33
C335
CN22
CN225
CN23
CN24
CN245
CN33
CN335
CR23
CR235
CR24
CR245
CR255
CR26
CW22
CW225
Dimensions (in inches)
Visible Glass Width
12 5/8
16 1/8
19 3/4
24
27 1/8
31 9/16
Visible Glass Height
19 3/4
23 9/16
31 1/8
43 3/16
55 1/16
67 1/16
