Casement Window Hinge

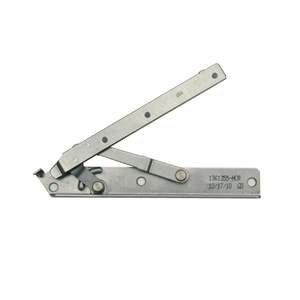

Upper Straight Arm Hinge with Screws, 22 Inch Opening, CX135 & CXW15 through CXW16, Left-Hand Corrosion Resistant

Part #: 1361355

Casement Window Hinge
Casement Window Hinge

Upper Straight Arm Hinge with Screws, 22 Inch Opening, CX135 & CXW15 through CXW16, Left-Hand Corrosion Resistant

Part #: 1361355

Works With:
400 Series Casement Window

Price$84.42
Description
  • Upper straight arm hinge with screws.
  • Left-hand - a Left-hand unit will have the lock on the Left-hand side when viewed from the interior.
  • Hinge is corrosion-resistant and is made with high-quality stainless steel, which is ideal for harsh and corrosive environment applications such as heavy industrial or coastal areas.
  • This hinge must be used for window sizes CXW5-CXW6 to meet code standards, for windows with a 22 inch opening.
  • For units manufactured from 1966 to current, if your window was manufactured prior to 1994 you must replace both the upper and lower hinge.
*These parts require Instruction Guide Hinge Replacement/Conversion (0005462)
Specifications
Details
Product Series
400 Series
Product Line
400 Series Casement Window
Unit Number & Size
C12
C125
C13
C135
C14
C145
C155
CXW6
CXW55
CXW5
CXW16
CXW155
CXW15
CXW145
CXW14
CXW135
CXW13
CX35
CX25
CX16
CX155
CX15
CX14
CX135
CW35
CW25
CW16
CW155
CW15
CW145
CW14
CW135
CW13
CW125
CW12
C35
C25
C15
C16
CX125
CX13
CX145
CW235
C22
C225
C23
C235
C24
C245
C255
C26
C32
C325
C33
C335
CW22
CW225
CW245
CW32
CW325
CW345
CW335
CW34
Handing
Left
Lead Time
8
Vintage To Year
1966 - Present
Warranty
10 Years Limited
Dimensions (in inches)
Visible Glass Width
27 1/8
31 9/16
Visible Glass Height
55 1/16
67 1/16
Weight (pounds)
22.00
Instructions
pdfCasement Handing
pdfStandard Size Guide
pdfHinge Replacement
video Casement Hinge Replacement
